Aluminium Round Wire/Tube
COILS
Aluminium Winding Wire/Tube for High-Performance Applications
Mechanical Al Wire
- Weights are only reference values – nominal weights can be adapted to customer requests to a large extent
- Depending on the wire diameter, weights and coil supply forms can be limited
- Aluminium Alloys: 1000 series and EN AW-6101 (AlMgSi0.5)

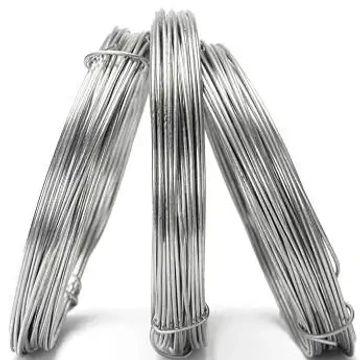

Coils on stands
Dia 1,5 - 6 mm / up to 300 kg
Productions coils
Dia 1,5 - 12 mm / up to 100 kg
Coils for Earthing and Lightning Protection
Dia 8 and 10 mm or Flat 30 x 3 mm
Aluminium Alloy: AW-1370 (Al 99.7) and EN AW-6101 (AlMgSi0.5).
Conditions: from F7 to F15
Packaging: 20 kg/ring and 50 kg/ring

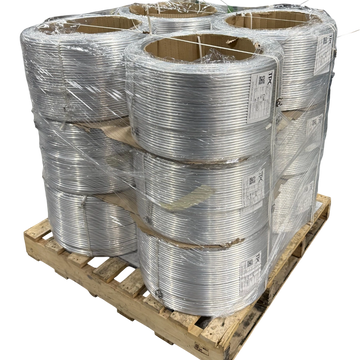

Packaging for Lightning protection wire
Dia 8 and 10 mm
Aluminium Alloy: AW-1370 (Al 99.7)
Conditions: F7 ( soft and clean )
Packaging: 600 kg/pallet and 50 kg/ring
Aluminium Wire rod
Dia 9,5 & 12 mm / up to 2.500 kg Coils
Grade / Composition:
AW-1370 (Al 99.7) - H11
AW-1080 (Al 99.8) - H11
Tube Coil
Dia 7 – 12 mm
Wall Thickness: 0,7 – 1,2 mm
SPOOLS
Fine Wire & More
Dia 0,12 - 12 mm / up to 200 kg
Spools: from 250 to 630
Aluminium Alloys
1000 series, 6000 series;
INSULATED CONDUCTORS
Paper Covered Aluminium / Copper Conductors
Premium Paper Insulated Copper & Aluminium Conductors for Demanding Electrical Applications
Technical Size
Round Diameter (mm): 0,8 - 12,0
Flat (mm): t: 0,8 - 10,0 / w: 4,0 - 25,0
w/t Ratio: 1,4 - 8
Cross Section (SQ.): 3,2 - 120
Thermal Class: 120 C
Standard: IEC, NEMA, GB, JIS
Package: 30 /50 / 150 kg wooden spool or according to customers requirements.
Applications
TPC's Paper Insulated Copper and Aluminium Conductors are widely used in:
- Oil-immersed transformers
- Air conditioning units
- Washing machines
- Compressors
- Other electrical devices requiring coil winding, where high thermal stability and dielectric reliability are essential
Paper Covered
At TPC, we offer a comprehensive range of Paper Insulated Copper and Aluminium Conductors, precisely engineered to meet the demanding requirements of modern electrical systems. Manufactured from high-purity copper or aluminium and insulated with premium-grade electrical paper, our conductors provide outstanding dielectric properties, excellent thermal resistance, and high mechanical strength.
These conductors are ideally suited for use in transformers, electric motors, generators, switchgear,
Fiber Glass / Douglas Covered Aluminium / Copper Conductors
Premium Paper Insulated Copper & Aluminium Conductors for Demanding Electrical Applications
Technical Size
Round Diameter (mm): 0,8 - 12,0
Flat (mm): t: 0,8 - 10,0 / w: 4,0 - 25,0
w/t Ratio: 1,4 - 8
Cross Section (SQ.): 3,2 - 120
Thermal Class: 155C, 180C
Standard: IEC, NEMA, GB, JIS
Package: 30 / 50 / 150 kg wooden spool or according to customers requirements.
Applications
- Power and distribution transformers
- Electric motors
- Welding machines
- Wind energy systems
- Dry-type transformers
- Oil-immersed transformers
- High-frequency inductors
- Ultrasonic and video equipment
These conductors offer excellent dielectric strength, thermal stability, and mechanical durability for demanding coil winding applications.
Fiber / Dauglas Covered
TPC Wires offers high-performance Fiberglass and Douglas insulated copper/aluminium conductors, ideal for transformers, motors, and more. Engineered for reliability, thermal resistance, and mechanical strength, they are fully customizable for sealed electrical systems.
Aramid Paper (Nomex) Covered Aluminium/Copper Wire
Premium Paper Insulated Copper & Aluminium Conductors for Demanding Electrical Applications
Technical Size
Round Diameter (mm): 0,8 - 12,0
Flat (mm): t: 0,8 - 10,0 / w: 4,0 - 25,0
w/t Ratio: 1,4 - 8
Cross Section (SQ.): 3,2 - 120
Thermal Class: 220C
Standard: IEC, NEMA, GB, JIS
Package: 30 / 50 / 150 kg wooden spool or according to customers
Applications
- Oil-immersed transformers
- Air-conditioners
- Washing machines
- Compressors
- Oil-immersed electromagnets
- Other electrical coil windings
🌀 Ideal for reliable performance in hermetically sealed electrical systems
Aramid Paper Covered
TPC Wires offers high-performance Aramid paper covered copper and aluminium conductors designed for extreme thermal and electrical stress. The Nomex insulation, provides exceptional heat resistance, dielectric strength, and mechanical durability.
Ideal for use in dry-type transformers, traction motors, generators, and other high-temperature electrical systems, these conductors ensure long-lasting and reliable operation in demanding environments.
